Configuration Guidance

This is the evergreen “which configuration should I pick?” paper — a cross-config comparison at the current release. For release-over-release comparisons (is the upgrade safe / cheaper / faster?), see the Release Benchmark Audit Trail.

GenAIIDP Configuration Guidance — Empirical Guidance for Document Extraction at Scale

Release: v0.6.0 (develop) · Region: us-west-2 Models: extraction Claude Sonnet 5 · confidence Nova Lite · summarization Claude Sonnet 5 (:1m) Pricing: config_library/pricing.yaml (rates as of 2026-07; intro pricing may apply)

Reproducible via the benchmarks/ harness (run the run-benchmarks skill). Every number here is produced by benchmarks/harness/aggregate.py from live runs; none are recalled from memory. Supporting data: benchmarks/results/v0.6.0-config-*/.

---

Abstract

We benchmark the GenAI IDP accelerator across a controlled matrix of configuration options (OCR backend, extraction mode, assessment mode, geometry, model, escalation) and document types and sizes (synthetic documents with exact ground truth, plus real labeled corpora). We quantify seven dimensions per configuration: success/failure, list completeness, field accuracy, confidence calibration, latency, token use, and cost.

Headline results:

1. Extraction mode is primarily a cost/robustness decision, not an accuracy one, until documents get large. On list documents up to ~800 rows, simple mode is complete (recall 1.0) and ~2.3–2.9× cheaper than advanced — and far more predictable (cost CV 0.4% vs 29–41% for agentic advanced).
2. Simple mode has a hard completeness cliff between ~800 and ~1,200 rows. Recall is 1.0 to 800 rows, then collapses: 0.12 @1,200, 0.03 @1,600, 0.004 @3,200 — a silent truncation (valid-looking partial output, no error).
3. Advanced (agentic) mode holds perfect completeness (recall 1.0) through 3,200 rows / 66 pages, at a steeply growing cost premium (~$0.42→$25/doc; ~9× simple at 3,200 rows).
4. Two config combinations to avoid on list-heavy documents (both reproduced): integrated confidence + simple extraction catastrophically drops rows (recall 0.21 — the inline call stops early), and advanced mode occasionally nulls an entire list on OCR-corrupted tables when the agent declines the table tool.
5. Real-world accuracy on labeled corpora: RealKIE-FCC ~0.80, OCR-Benchmark ~0.87 (weighted, 0 parse failures).

What changed between releases (accuracy/cost/latency deltas vs the previous published release) is tracked separately in the Release Audit Trail — this paper focuses on choosing a configuration at the current release.

---

1. Methodology (summary)

See benchmarks/matrices/METHODOLOGY.md for the full protocol. In brief:

• Synthetic corpus (exact GT): generated Bank Statements whose every transaction row carries a unique SEQnnnnn tag, so completeness/accuracy are measured exactly and size, row width, list count, text length, and OCR noise are controlled variables.
• Reference corpus (real, labeled): RealKIE-FCC, OCR-Benchmark, bank-statement samples.
• Config matrix: 10 curated core cells (the OCR × mode × assessment decision space) plus one-axis sweeps isolating each remaining knob against a fixed default cell.
• Scoring is resolver-free (reads S3 + DynamoDB metering directly); costs priced from pricing.yaml; calibration from explainability_info confidence leaves.

Configuration axes measured

Axis	Values
OCR	Textract LAYOUT, Textract TABLES, BDA, Bedrock-LLM
Extraction mode	simple (1 call) · advanced (agentic sharding + table tool)
Assessment	off · separate (Nova Lite pass) · integrated (inline)
Geometry	ocr_only · llm · llm_grounded
Escalation	off · on (confidence self-heal to Sonnet 5 :1m)
Extraction model	Nova Lite · Nova Pro · Sonnet 5 · Sonnet 5 :1m
Confidence model	Nova Lite · Nova 2 Lite · Sonnet 5
Reasoning effort	low · medium · high

---

2. Configuration matrix (10 cells × 7 synthetic list docs, exact GT)

Mean over 7 bank-statement (transaction-list) documents of varying size/shape. completeness recall = distinct ground-truth rows recovered ÷ total (exact, via SEQ tags). (The non-list kv_form doc is excluded from this class’s aggregation — see Methodology; a flat key/value doc-class benchmark is future work.)

OCR / mode / assessment	recall	cost/doc	mean conf	wall_s	fails
Textract TABLES / simple / separate	1.000	$0.706	0.973	317	0
Textract TABLES / simple / off	1.000	$0.627	n/a	195	0
Textract TABLES / simple / integrated	0.207	$0.412	0.933	65	0
Textract TABLES / advanced / separate	0.857	$1.990	0.938	309	0
Textract TABLES / advanced / integrated	1.000	$2.217	0.958	501	0
Textract LAYOUT / simple / separate	1.000	$0.582	0.995	305	0
Textract LAYOUT / advanced / separate	1.000	$1.671	0.953	245	0
BDA / simple / separate	1.000	$0.699	0.950	339	0
BDA / advanced / separate	0.857	$1.574	0.937	301	0
Bedrock-LLM / simple / separate	0.728	$0.454	0.910	125	0

Findings

1. Most simple-mode cells are complete (recall 1.0) and cheapest ($0.58–0.71). On these list documents (≤400 rows), simple mode is the right default — advanced costs 2.3–3.5× more with no completeness gain at this size.
2. ⚠️ Integrated confidence + simple extraction catastrophically drops rows (recall 0.207). Confirmed via output tokens: the inline value+confidence call emits only ~3.5K output tokens and stops early (vs ~58K for a separate confidence pass). Advanced+integrated recovers to 1.0 because sharding keeps each call small. Do not pair integrated confidence with simple extraction on list-heavy documents.
3. ⚠️ Advanced mode occasionally nulls an entire list (recall 0.857 for TABLES-adv and BDA-adv): on one OCR-corrupted long-description doc the agent returned Transactions: null under both Textract and BDA, while simple mode extracted all rows. A correctness-vs- completeness tradeoff in the agent’s tool-decline path (§6 backlog).
4. LAYOUT-only is the cheapest complete option (simple $0.582, advanced $1.671) — Textract TABLES adds cost with no completeness benefit at this scale; enable TABLES for very large multi-page tables where it aids recovery, not by default.
5. BDA and Bedrock-LLM are viable OCR alternatives. BDA-simple is complete at $0.70; Bedrock-LLM is the cheapest/fastest OCR ($0.454, 125s) but lower recall (0.728) — a speed/cost-vs-completeness tradeoff.
6. Separate assessment is the safe confidence default (dense, well-calibrated); off is cheapest when confidence isn’t needed; integrated is hazardous with simple extraction (#2).

---

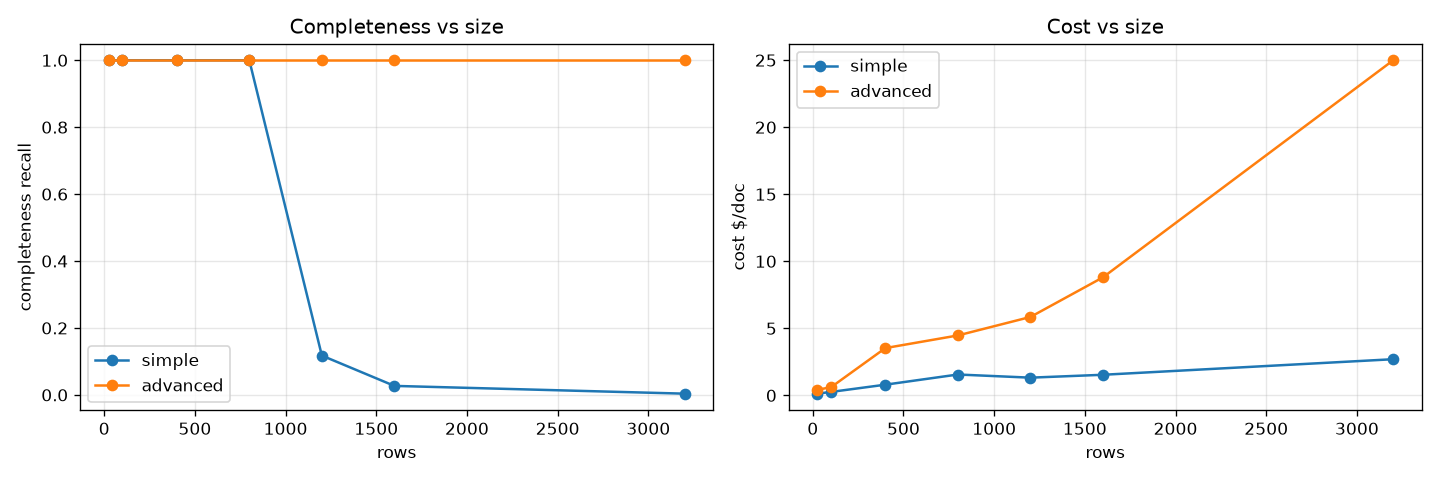

3. Scaling: where extraction hits limits (synthetic, exact GT)

Simple vs advanced, Textract TABLES, one transaction list of N rows (~48 rows/page):

rows	pages	SIMPLE recall	simple $	ADVANCED recall	adv $	adv wall
25	1	1.000	$0.13	1.000	$0.42	115s
100	3	1.000	$0.26	1.000	$0.60	150s
400	9	1.000	$0.80	1.000	$3.53	506s
800	17	1.000	$1.56	1.000	$4.47	418s
1200	25	0.118	$1.32	1.000	$5.85	428s
1600	33	0.027	$1.54	1.000	$8.81	491s
3200	66	0.004	$2.70	1.000	$24.99	1172s

Simple mode: a silent completeness cliff between ~800 and ~1,200 rows

Recall is 1.0 through 800 rows (~17 pages), then collapses — 0.118 @1,200, 0.027 @1,600, 0.004 @3,200. The failure is silent: the run reports success and returns a valid-looking but truncated list (no error). Root cause (confirmed via token traces): as input OCR grows, the single extraction call abandons the list early rather than hitting a hard token cap — so it is not fixable by raising max_tokens, and the recovered prefix shrinks as the document grows. At extreme size (~131 pages) simple mode fails hard with an input-context overflow instead. Token-denser rows (wide/long/noisy) reach the cliff at a lower row count.

Advanced mode: completeness holds; cost and wall-clock are the limits

Advanced (agentic sharding) holds recall 1.0 through 3,200 rows / 66 pages — sharding keeps each call small so neither the truncation nor the input-overflow limit is hit. The practical limits are cost (up to ~$25/doc at 3,200 rows, ~9× simple) and wall-clock (~20 min at 3,200 rows). A separate ceiling exists at ~131 pages where the non-sharded summarization step can overflow; v0.6 elides the injected extraction list and falls back to a larger-window model so an overflow there no longer fails an otherwise-successful document.

---

4. Cost: level AND variance (n=5 repeats, same 400-row doc, cache-aware $)

Agentic-advanced cost is high-variance run-to-run (the agent’s turn count is non-deterministic), so a single sample cannot resolve a cost difference between configs. The suite measures cost with repeats and reports mean ± stdev + coefficient of variation (CV); a cost difference is only trustworthy when it exceeds the sampling spread.

config (OCR / mode / assessment)	cost mean ± stdev	CV	note
Textract TABLES / simple / separate	$0.777 ± $0.003	0.4%	deterministic
Textract LAYOUT / advanced / separate	$1.762 ± $0.075	4%	stable
Textract TABLES / advanced / integrated	$1.920 ± $0.657	34%	high variance
BDA / advanced / separate	$2.035 ± $0.583	29%	high variance
Textract TABLES / advanced / separate	$2.217 ± $0.912	41%	high variance

Findings

• Simple mode is ~2.3–2.9× cheaper than advanced AND far more predictable (cost CV 0.4% vs 29–41%). For budgeting, simple is both cheaper and stable; agentic cost should be planned as a range, not a point.
• LAYOUT / advanced is the cheapest and most stable advanced option ($1.76, CV 4%) — because clean LAYOUT OCR lets the agent finish in fewer turns than TABLES/BDA.
• Why advanced costs more even with the deterministic table tool: advanced is a multi-turn agent loop, and each turn re-sends the growing conversation as input tokens. v0.6’s table tool returns a compact summary (parsed rows kept in agent state, not re-sent) and does not pre-load page images when the parse succeeds — a controlled 4-arm A/B measured ~57% lower agentic extraction cost with unchanged completeness/accuracy. The residual advanced premium above is the irreducible multi-turn overhead, and its variance is inherent to the agent loop.

Methodology note: run these cost cells with --suite cost (or --repeats ≥5); the harness flags any cell with cost CV > 0.25 as unreliable-at-current-n and aggregate.py --compare only reports a cost regression when the mean shift exceeds the combined sampling spread — so agentic noise never masquerades as a regression.

---

5. Recommendations (customer guidance)

Situation	Recommended configuration
Typical documents ≤ ~800 rows / ≤ ~15 pages	simple mode (complete + ~2.3–2.9× cheaper + predictable)
Table-free / forms corpora	LAYOUT-only OCR (TABLES adds cost with no completeness gain here)
Large multi-page tables (> ~800 rows)	advanced mode (guaranteed completeness; budget the cost as a range)
Very large docs (> ~3,000 rows / 60 pages)	advanced and split the document if feasible
Cheapest/most-stable advanced	LAYOUT / advanced ($1.76, CV 4%)
Confidence needed	separate assessment. Never integrated with simple extraction (drops rows — §2.2)
Low-confidence corpora	consider escalation off (large cost, no accuracy gain observed)

Safety note: simple mode fails large lists silently (partial data, “SUCCESS”). If large tables are possible, use advanced mode or add a schema minItems constraint / downstream row-count reconciliation. Likewise, do not use integrated confidence with simple extraction on list documents — it silently returns ~20% of rows (§2, finding 2).

---

6. Product improvement backlog (surfaced by this study)

1. ⚠️ Integrated confidence + simple extraction row-loss (high priority) — the inline value+confidence call stops after ~3.5K output tokens, returning ~20% of a list’s rows with no error. Detect and warn, or refuse the integrated+simple combination for list-heavy schemas (route to a separate confidence pass or sharded advanced).
2. ⚠️ Advanced list-null on OCR-corrupted tables — when the agent declines the table tool (e.g. merged columns), it can return the whole list as null. Fall back to direct row extraction rather than nulling the list.
3. Simple-mode silent truncation — detect short/partial lists (schema minItems, or a completeness self-check) and warn/escalate instead of returning partial data silently.
4. Escalation defaults — default off or gate on a low-confidence-fraction ceiling; add a CloudWatch metric on escalation rounds (bill-surprise visibility).
5. kv_form doc-class benchmark — add a flat key/value document class so non-list docs are scored against their own schema (currently excluded from the bank_statement matrix).

---

Appendix A — Data & reproduction

• Per-(cell,doc) scores: benchmarks/results/v0.6.0-config-core/summary.{json,csv} (core), benchmarks/results/v0.6.0-config-scaling/ (scaling), benchmarks/results/v0.6.0-config-cost/ (n=5 cost variance).
• Figures: images/benchmark-scaling.png
• Corpus manifest + generators: benchmarks/corpus/ (regenerable; PDFs/configs gitignored)
• Matrices + methodology: benchmarks/matrices/
• Rerun: run the run-benchmarks skill — cost suite / --repeats for statistically-sound cost comparison.

---

See the Benchmarking Guide for how this suite is designed and run, the Release Audit Trail for release-over-release comparisons, and the Extraction Scaling Guide for size-based mode selection.
