Custom MCP Agent Integration

The GenAI IDP solution includes support for External MCP (Model Context Protocol) Agents that can connect to your own MCP servers to provide additional tools and capabilities. This enables you to extend the IDP system with custom functionality hosted in your own infrastructure.

Overview

The External MCP Agent allows you to:

Extend IDP Capabilities: Add custom tools and services to the document processing workflow
Cross-Account Integration: Host MCP servers in separate AWS accounts or external infrastructure
Dynamic Tool Discovery: Automatically discover and integrate available tools from your MCP server
Secure Authentication: Use AWS Cognito OAuth for secure cross-account access
Real-time Integration: Tools are available immediately through the IDP web interface

Architecture

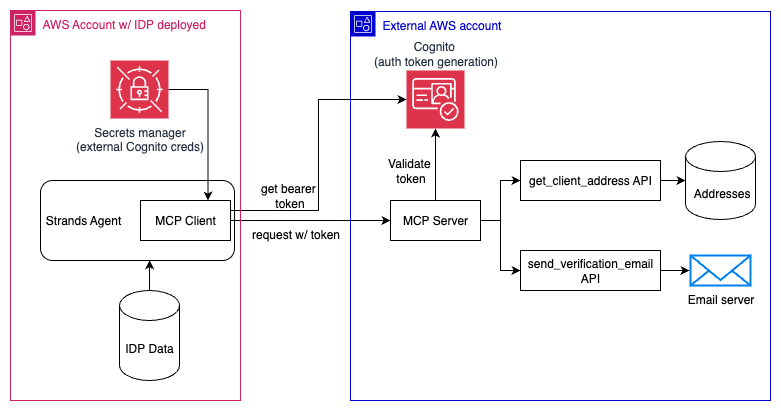

An example architecture demonstrating the authentication flow and connections between the MCP Client (running in the IDP application) and an external MCP Server (deployed outside of the IDP application) can be seen below. The get_client_address and send_verification_email APIs drawn are just for demonstration purposes.

Architecture Diagram

Prerequisites

Before setting up the External MCP Agent, you need:

MCP Server: A working MCP server that implements the Model Context Protocol
AWS Cognito: A Cognito User Pool for authentication (can be in a separate AWS account)
Network Access: Your MCP server must be accessible via HTTPS from the IDP solution
AWS Permissions: Access to create secrets in the IDP solution’s AWS account

For guidance on deploying your own MCP servers with Cognito authentication, see the AWS Bedrock Agent Core MCP Documentation.

Setup Instructions

Step 1: Prepare Your MCP Server

Your MCP server must:

Implement MCP Protocol: Follow the Model Context Protocol specification
Use Streamable HTTP Transport: The IDP solution uses streamable HTTP for MCP connections
Support OAuth Authentication: Accept OAuth bearer tokens in the Authorization header
Be HTTPS Accessible: Must be reachable via HTTPS from the IDP solution

Example MCP Server Requirements:

# Your MCP server should accept requests like:
# POST https://your-server.com/mcp
# Authorization: Bearer <cognito-access-token>
# Content-Type: application/json

Step 2: Set Up AWS Cognito Authentication

Create a Cognito User Pool for MCP authentication (this can be in your own AWS account):

Create User Pool:

aws cognito-idp create-user-pool \
  --pool-name "MCP-Server-Auth" \
  --policies "PasswordPolicy={MinimumLength=8,RequireUppercase=false,RequireLowercase=false,RequireNumbers=false,RequireSymbols=false}"

Create App Client:

aws cognito-idp create-user-pool-client \
  --user-pool-id <your-pool-id> \
  --client-name "IDP-MCP-Client" \
  --auth-flows "USER_PASSWORD_AUTH"

Create User:

aws cognito-idp admin-create-user \
  --user-pool-id <your-pool-id> \
  --username "mcp-service-user" \
  --temporary-password "TempPass123!" \
  --message-action SUPPRESS

# Set permanent password
aws cognito-idp admin-set-user-password \
  --user-pool-id <your-pool-id> \
  --username "mcp-service-user" \
  --password "SecurePassword123!" \
  --permanent

Step 3: Configure Your MCP Server for OAuth

Your MCP server should validate Cognito tokens:

import boto3
import jwt
from jwt import PyJWKSClient

def validate_cognito_token(token, user_pool_id, region):
    """Validate Cognito access token"""
    jwks_url = f"https://cognito-idp.{region}.amazonaws.com/{user_pool_id}/.well-known/jwks.json"
    jwks_client = PyJWKSClient(jwks_url)

    try:
        signing_key = jwks_client.get_signing_key_from_jwt(token)
        decoded_token = jwt.decode(
            token,
            signing_key.key,
            algorithms=["RS256"],
            audience=None,  # Cognito access tokens don't have audience
            options={"verify_aud": False}
        )
        return decoded_token
    except jwt.InvalidTokenError:
        return None

# In your MCP server request handler:
def handle_mcp_request(request):
    auth_header = request.headers.get('Authorization', '')
    if not auth_header.startswith('Bearer '):
        return {"error": "Missing or invalid authorization header"}

    token = auth_header[7:]  # Remove 'Bearer ' prefix
    user_info = validate_cognito_token(token, USER_POOL_ID, REGION)

    if not user_info:
        return {"error": "Invalid token"}

    # Process MCP request...

Step 4: Create AWS Secret in IDP Account

In the AWS account where the IDP solution is deployed, create a secret with your MCP server credentials:

Navigate to AWS Secrets Manager in the AWS Console
Find the External MCP Agents Secret:
- Use the ExternalMCPAgentsSecretConsoleURL link from your CloudFormation stack outputs to go directly to the secret
- Alternatively, look for a secret named {StackName}/external-mcp-agents/credentials (where StackName is your IDP stack name)
- This secret is automatically created by the CloudFormation template with an empty array []

Update Secret with JSON Array Structure:

[
  {
    "mcp_url": "https://your-first-mcp-server.example.com/mcp",
    "cognito_user_pool_id": "us-east-1_XXXXXXXXX",
    "cognito_client_id": "xxxxxxxxxxxxxxxxxxxxxxxxxx",
    "cognito_username": "mcp-service-user-1",
    "cognito_password": "SecurePassword123!", //<!-- pragma: allowlist secret - Example password for documentation only -->
    "agent_name": "My Custom Calculator Agent",
    "agent_description": "Provides advanced mathematical calculations for document analysis"
  },
  {
    "mcp_url": "https://your-second-mcp-server.example.com/mcp",
    "cognito_user_pool_id": "us-east-1_YYYYYYYYY",
    "cognito_client_id": "yyyyyyyyyyyyyyyyyyyyyyyyyy",
    "cognito_username": "mcp-service-user-2",
    "cognito_password": "AnotherSecurePassword456!" //<!-- pragma: allowlist secret - Example password for documentation only -->
  }
]

Field Descriptions:

mcp_url: The HTTPS endpoint of your MCP server
cognito_user_pool_id: The Cognito User Pool ID from Step 2
cognito_client_id: The App Client ID from Step 2
cognito_username: The username created in Step 2
cognito_password: The permanent password set in Step 2
agent_name (optional): Custom name for the agent (defaults to “External MCP Agent {N}”)
agent_description (optional): Custom description for the agent (tool information is automatically appended)

Step 5: Verify Integration

Once the secret is created, the External MCP Agent will automatically:

Detect Configuration: The agent factory checks for the secret on startup
Authenticate: Uses Cognito credentials to obtain bearer tokens
Connect to MCP Server: Establishes connection using streamable HTTP transport
Discover Tools: Automatically discovers available tools from your server
Register Agent: Makes the agent available in the IDP web interface

Check Agent Registration:

from idp_common.agents.factory import agent_factory

# List available agents
agents = agent_factory.list_available_agents()
for agent in agents:
    print(f"- {agent['agent_id']}: {agent['agent_name']}")
    if agent['agent_id'] == 'external-mcp-agent-0':
        print(f"  Description: {agent['agent_description']}")

Authentication Flow

The authentication process works as follows:

Agent Creation: When a user selects the External MCP Agent in the web UI
Secret Retrieval: Agent retrieves credentials from AWS Secrets Manager
Cognito Authentication: Agent calls Cognito InitiateAuth with USER_PASSWORD_AUTH
Token Extraction: Agent extracts the access token from Cognito response
MCP Connection: Agent connects to MCP server with Authorization: Bearer <token> header
Tool Discovery: Agent discovers available tools via MCP list_tools method
Query Processing: User queries are processed using discovered MCP tools

Security Considerations

Cross-Account Security

Least Privilege: Cognito user should only have permissions needed for MCP operations
Token Rotation: Consider implementing token refresh for long-running operations
Network Security: Use VPC endpoints or security groups to restrict MCP server access
Audit Logging: Enable CloudTrail logging for Secrets Manager and Cognito operations

MCP Server Security

HTTPS Only: Always use HTTPS for MCP server endpoints
Token Validation: Properly validate Cognito tokens on every request
Rate Limiting: Implement rate limiting to prevent abuse
Input Validation: Validate all tool inputs to prevent injection attacks

Secret Management

Rotation: Regularly rotate Cognito passwords and update the secret
Access Control: Restrict secret access to only the IDP Lambda execution role
Encryption: Secrets Manager automatically encrypts secrets at rest
Monitoring: Monitor secret access through CloudTrail logs

Troubleshooting

Common Issues

Agent Not Appearing in UI:

Verify secret exists at path: {StackName}/external-mcp-agents/credentials (check CloudFormation outputs for exact name)
Check secret contains a valid JSON array format (not a single object)
Review CloudWatch logs for agent registration errors
Lambda Caching: The ListAvailableAgentsFunction and AgentProcessorFunction have caching that may delay new agents appearing for up to 15 minutes. To force refresh:
- Find the functions named {StackName}-ListAvailableAgentsFunction-* and {StackName}-AgentProcessorFunction-* in AWS Console → Lambda → Functions
- Go to Configuration → Environment variables for each function
- Add a temporary variable like REFRESH=1 and save to restart the functions
- Remove the temporary variable after agents appear

Authentication Failures:

Verify Cognito User Pool ID and Client ID are correct
Ensure username/password are valid and user is confirmed
Check that App Client allows USER_PASSWORD_AUTH flow

MCP Connection Errors:

Verify MCP server is accessible via HTTPS
Check that server accepts streamable HTTP transport
Ensure server properly validates Cognito tokens

Tool Discovery Issues:

Verify MCP server implements list_tools method correctly
Check that tools are properly registered in your MCP server
Review MCP server logs for connection and discovery errors

Debugging Steps

Check Agent Logs:

aws logs filter-log-events \
  --log-group-name "/aws/lambda/agent-processor" \
  --filter-pattern "External MCP"

Test Cognito Authentication:

import boto3

client = boto3.client('cognito-idp')
response = client.initiate_auth(
    ClientId='your-client-id',
    AuthFlow='USER_PASSWORD_AUTH',
    AuthParameters={
        'USERNAME': 'mcp-service-user',
        'PASSWORD': 'SecurePassword123!'
    }
)
print(response['AuthenticationResult']['AccessToken'])

Test MCP Server Directly:

curl -X POST https://your-mcp-server.com/mcp \
  -H "Authorization: Bearer <token>" \
  -H "Content-Type: application/json" \
  -d '{"method": "list_tools", "params": {}}'

Best Practices

Development

Start Simple: Begin with basic tools and gradually add complexity
Test Locally: Test your MCP server locally before deploying
Use Type Hints: Provide clear type hints for tool parameters
Document Tools: Include clear descriptions for each tool

Production

Monitor Performance: Track MCP server response times and error rates
Implement Caching: Cache frequently accessed data to improve performance
Handle Errors Gracefully: Return meaningful error messages for tool failures
Scale Appropriately: Ensure your MCP server can handle concurrent requests

Security

Validate Inputs: Always validate and sanitize tool inputs
Limit Scope: Only expose tools that are necessary for document processing
Audit Access: Log all tool usage for security auditing
Regular Updates: Keep dependencies and security patches up to date

Support

For additional help with MCP Agent integration:

IDP Documentation: Review the main IDP documentation for context
MCP Specification: Refer to the Model Context Protocol specification
AWS Cognito: See AWS Cognito documentation
Troubleshooting: Check CloudWatch logs for detailed error information

The External MCP Agent provides a powerful way to extend the IDP solution with your own custom tools and services while maintaining security and proper authentication.
